Ohm’s Law is one of the foundational principles of electrical circuits, describing the relationship between voltage, current, and resistance. Named after the German physicist Georg Simon Ohm, this law provides a simple mathematical framework for analyzing electrical systems and designing circuits. Whether you’re a student learning the basics of electronics or an engineer optimizing complex circuits, understanding Ohm’s Law is essential.

In this article, we will explore the fundamental concepts of voltage, current, and resistance, define Ohm’s Law mathematically, and examine its applications in practical scenarios.

Understanding Voltage, Current, and Resistance

To fully grasp Ohm’s Law, it’s crucial to understand the three key components it connects: voltage, current, and resistance.

1. Voltage (V)

Voltage, often referred to as electric potential difference, is the driving force that pushes electric charges through a conductor. It is measured in volts (V) and is analogous to the pressure that drives water through a pipe.

Key Characteristics:

• Voltage is created by a difference in electric potential between two points.
• It is supplied by sources like batteries, generators, or power supplies.

Example: A 9V battery creates a potential difference of 9 volts between its terminals, enabling current to flow in a connected circuit.

2. Current (I)

Current is the flow of electric charge through a conductor. It is measured in amperes (A) and represents how much charge passes through a point in a circuit per second.

Key Characteristics:

• Current flows from the positive terminal to the negative terminal of a voltage source in conventional notation.
• It is the movement of electrons in the opposite direction of conventional current flow.

Example: If 2 amps of current flow through a lightbulb, it means 2 coulombs of charge pass through the bulb every second.

3. Resistance (R)

Resistance is the property of a material or component that opposes the flow of electric current. It is measured in ohms (Ω) and depends on the material, length, and cross-sectional area of the conductor.

Key Characteristics:

• Resistance determines how much current flows for a given voltage.
• Materials like copper and silver have low resistance, while insulators like rubber have high resistance.

Example: A resistor with 100Ω resistance will limit the current flow in a circuit for a given voltage.

What is Ohm’s Law?

Ohm’s Law defines the relationship between voltage (V), current (I), and resistance (R) in an electrical circuit:

This formula states that:

• Voltage (V) is directly proportional to the product of current (I) and resistance (R).
• Current (I) is directly proportional to voltage (V) and inversely proportional to resistance (R).

Ohm’s Law can also be rearranged into two alternate forms:

Interpreting Ohm’s Law

1. Direct Proportionality

• If resistance remains constant, increasing the voltage increases the current proportionally.
• Similarly, decreasing the voltage reduces the current.

2. Inverse Proportionality

• For a constant voltage, increasing the resistance reduces the current, while decreasing the resistance increases the current.

Example Calculation: Suppose a circuit has a 12V battery and a 6Ω resistor. Using Ohm’s Law:

The current in the circuit is 2 amperes.

Graphical Representation of Ohm’s Law

Ohm’s Law can be visualized using a simple graph:

1. Voltage vs. Current: A straight line indicates the linear relationship between voltage and current when resistance is constant. The slope of the line represents the resistance.
2. Current vs. Resistance: For a constant voltage, the current decreases inversely as resistance increases.

Visualization: Plotting V vs. I for a resistor of 10Ω yields a straight line where:

• I = 1 A at V = 10 V
• I = 2 A at V = 20 V

Applications of Ohm’s Law

Ohm’s Law has widespread applications in electrical engineering and everyday electronics:

1. Circuit Analysis

Ohm’s Law is used to calculate unknown parameters in circuits, such as the current flowing through a resistor or the voltage drop across it.

Example: In a series circuit with a 10Ω resistor and a 5V battery, the current can be calculated as:

2. Designing Circuits

Engineers use Ohm’s Law to design circuits with appropriate resistances to ensure desired current and voltage levels.

Example: In a simple LED circuit, a resistor is added to limit the current to prevent the LED from burning out.

3. Troubleshooting

Technicians use Ohm’s Law to diagnose issues in electrical systems, such as identifying faulty components or detecting open circuits.

Example: If a device is not operating correctly, measuring the voltage and current can reveal whether the resistance in a component is too high or too low.

4. Power Calculation

Ohm’s Law forms the basis for calculating electrical power:

Where P is power in watts. Combining this with Ohm’s Law allows alternate forms of the power equation:

Example: A resistor with a voltage of 10V across it and a resistance of 5Ω dissipates power as:

Advanced Applications of Ohm’s Law

Ohm’s Law extends beyond simple circuits and plays a crucial role in the analysis and design of more complex systems. Here are some advanced applications:

1. Voltage Dividers

A voltage divider is a fundamental circuit that uses resistors to produce a specific output voltage from a larger input voltage. It’s widely used in sensors and analog circuits.

Voltage Divider Formula:

Where:

• V_in: Input voltage
• V_out​: Output voltage across R₂
• R₁​ and R₂​: Series resistors

Example: If V_in = 12 V, R₁ = 4 Ω and R₂ = 8 Ω

The output voltage across R₂ is 8V.

2. Current Dividers

Current dividers are used to split current between parallel branches of a circuit.

Current Divider Formula:

Example: If I_total = 3 A, R₁ = 4 Ω and R₂ = 2 Ω

The current splits proportionally based on the resistance of each branch.

3. Impedance in AC Circuits

While Ohm’s Law is traditionally used for DC circuits, it can also be applied to AC circuits by replacing resistance (R) with impedance (Z). Impedance accounts for resistance, capacitance, and inductance in AC systems.

Ohm’s Law in AC:

Where Z is the total impedance in ohms (Ω).

Example: In a series RLC circuit with R = 50 Ω, X_L = 30 Ω and X_C = 20 Ω:

For a voltage of V = 120 V, the current is:

Real-World Examples of Ohm’s Law

Ohm’s Law is applied in various real-world scenarios, ranging from household electronics to industrial systems. Here are a few examples:

1. Designing LED Circuits

LEDs require precise current control to prevent damage. Ohm’s Law helps determine the value of the resistor needed to limit the current.

Example: For a 9V battery powering an LED with a forward voltage of 2V and a maximum current of 20mA:

A 350Ω resistor is required to protect the LED.

2. Calculating Voltage Drops

In a series circuit, Ohm’s Law calculates voltage drops across components, ensuring proper design and functionality.

Example: In a series circuit with a 12V battery and two resistors (R₁ = 4 Ω, R₂ = 8 Ω):

Voltage drops:

3. Troubleshooting Faulty Circuits

Technicians use Ohm’s Law to identify issues such as open circuits or excessive resistance.

Example: A motor rated for 5A at 12V fails to start. Measuring the circuit shows V = 12 V and I = 2 A. Using R = V / I, 12 / 2 = 6 Ω, the resistance is higher than expected, indicating a fault.

Limitations of Ohm’s Law

While Ohm’s Law is invaluable for many applications, it has limitations when applied to non-linear or dynamic systems:

1. Non-Ohmic Materials

Ohm’s Law applies only to ohmic materials where resistance remains constant. Non-ohmic components, such as diodes and transistors, have variable resistance that depends on voltage or current.

Example: A diode allows current to flow only above its threshold voltage, and its resistance changes with current.

2. High-Frequency Circuits

In high-frequency AC circuits, factors like capacitance, inductance, and electromagnetic interference affect performance, making impedance a more accurate representation than resistance.

3. Temperature Dependence

Resistance varies with temperature for most materials. Ohm’s Law assumes constant resistance, which may not hold in extreme temperature conditions.

Example: A filament bulb’s resistance increases as it heats up, reducing current flow.

Analyzing Complex Circuits with Ohm’s Law

In more complex circuits, Ohm’s Law is combined with other principles like Kirchhoff’s Voltage and Current Laws (KVL and KCL) for comprehensive analysis.

1. Series-Parallel Circuits

In circuits with both series and parallel components:

• Use Ohm’s Law to calculate equivalent resistance for each section.
• Apply KVL to find voltages and KCL to calculate currents.

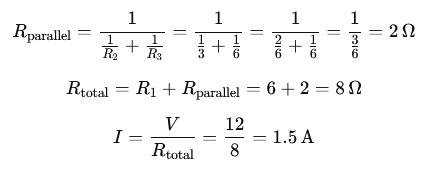

Example: In a circuit with a 12V battery, R₁ = 6 Ω (series) and R₂ = 3 Ω, R₃ = 6 Ω (parallel):

Key Takeaways: Revisiting Ohm’s Law

Ohm’s Law is more than a simple mathematical equation; it is a cornerstone of electrical engineering and circuit analysis. Let’s recap its essential aspects:

1. Fundamental Equation

Ohm’s Law relates voltage (V), current (I), and resistance (R) as:

2. Applications

• Calculating current, voltage, or resistance in circuits.
• Designing and troubleshooting circuits.
• Analyzing power consumption (P = V ⋅ I, P = I² ⋅ R, or P = V²/R).

3. Limitations

• Does not apply to non-ohmic materials (e.g., diodes, transistors).
• Assumes constant resistance, which may vary in high-frequency or high-temperature conditions.

By mastering these principles, students, technicians, and engineers gain a robust framework for understanding and manipulating electrical systems.

Ohm’s Law in Emerging Technologies

Ohm’s Law remains highly relevant in modern technologies and emerging applications. Here’s how it continues to impact innovations:

1. Renewable Energy Systems

Ohm’s Law is crucial for optimizing solar panels, wind turbines, and energy storage systems.

Example: Solar Panels

• Voltage (V) and current (I) characteristics are used to determine the maximum power point (P = V⋅I).
• Engineers design inverters and battery systems to handle specific voltage and current levels.

2. Electric Vehicles (EVs)

EV charging systems and battery management rely heavily on Ohm’s Law to ensure safe and efficient operation.

Example:

• EV chargers regulate voltage and current to charge batteries while minimizing heat generation.
• Battery pack design considers internal resistance to optimize energy delivery.

3. Internet of Things (IoT)

Low-power IoT devices often operate on limited energy budgets. Ohm’s Law helps in optimizing circuit design to reduce power consumption.

Example: In IoT sensors, minimizing resistance in communication circuits ensures longer battery life without compromising performance.

4. Electronics and Semiconductor Devices

Modern electronics, including smartphones and processors, rely on Ohm’s Law for circuit design and thermal management.

Example: Designing printed circuit boards (PCBs) involves calculating trace resistances to prevent overheating and voltage drops.

Practical Tips for Mastering Ohm’s Law

Whether you’re a student, hobbyist, or professional, these practical tips can help you apply Ohm’s Law effectively:

1. Practice with Real Circuits

Building and testing simple circuits reinforces theoretical knowledge. Experiment with:

• Series and parallel resistor networks.
• Voltage dividers for sensor circuits.
• LED circuits to understand current limiting.

Tip: Use a breadboard, resistors, and a multimeter to measure voltage, current, and resistance directly.

2. Use Simulation Tools

Simulation software like LTSpice, Multisim, or Proteus allows you to experiment with virtual circuits without physical components.

Example: Simulate a circuit with variable resistance to observe changes in current and voltage.

3. Memorize Key Variations of Ohm’s Law

Remember derived formulas for quick problem-solving:

• V = I ⋅ R
• P = I² ⋅ R
• P = V² / R

4. Understand Component Behavior

Learn how resistors, capacitors, and inductors behave in different circuits. Use Ohm’s Law as a foundation to analyze:

• DC circuits: Focus on steady-state behavior.
• AC circuits: Incorporate impedance (Z) for sinusoidal inputs.

5. Troubleshoot Systematically

When diagnosing circuit problems:

• Measure voltage across components to identify drops.
• Calculate expected current based on resistance and compare it to actual measurements.
• Check for open or short circuits using Ohm’s Law principles.

Relevance of Ohm’s Law in Education and Industry

1. Educational Foundation

Ohm’s Law is among the first concepts introduced in physics and electrical engineering courses. It provides students with:

• A gateway to understanding more complex theories like Kirchhoff’s Laws.
• A practical tool for designing and analyzing circuits in lab experiments.

2. Industrial Applications

In industries ranging from consumer electronics to power generation, Ohm’s Law is an indispensable tool for:

• Circuit optimization.
• Power management.
• Fault analysis.

Advanced Problem-Solving with Ohm’s Law

To master Ohm’s Law, challenge yourself with these advanced problems:

1. Resistor Ladder Networks

Analyze circuits with multiple resistors in series and parallel combinations.

Example: For a network with R₁ = 4 Ω, R₂ = 6 Ω (series) and R₃ = 12 Ω (parallel to R₂​):

Solve for equivalent resistance and calculate current for a 10V source.

2. Heat Dissipation in Resistors

Calculate the heat dissipated by resistors using P = I² ⋅ R.

Example: If I = 3 A flows through a 5 Ω resistor:

This resistor needs to handle 45W of power safely.

3. Impedance in RLC Circuits

Combine Ohm’s Law with impedance calculations to analyze AC circuits.

Example: For a series RLC circuit with R = 50 Ω, X_L = 40 Ω, X_C = 20 Ω:

Calculate the current for a 120V AC source.

Conclusion

Ohm’s Law is a timeless principle that underpins electrical and electronic systems. Its simplicity makes it accessible to beginners, while its versatility allows professionals to solve complex engineering challenges. From designing circuits and troubleshooting electronics to advancing renewable energy and IoT devices, Ohm’s Law remains indispensable.

By practicing real-world applications, exploring advanced scenarios, and leveraging modern tools, you can master Ohm’s Law and unlock a deeper understanding of the electrical world. Its enduring relevance is a testament to the foundational insights it offers in both theoretical and practical domains.
